00453-5

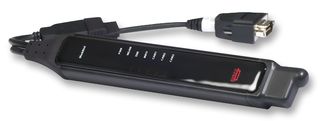

The BlackBird SemiPro HS is a 2-channel high performance wireless communication link to the CAN bus utilising WLAN technology. This high speed interface communicates to CAN via WLAN (802.11b/g), which offers increased mobility and extended range of coverage for CAN bus networks. It is a powerful and versatile WLAN solution to replace cumbersome cables for CAN bus application. It provides flexible communication solution when operating on infrastructure mode and Ad-hoc mode

• WLAN version 802.11b/g
• Encryption to WPA2/WPA/WEP128/WEP64
• Accessible to Public/Private
• Provides the functionality of a WLAN and a USB to CAN bus interface in a single device
• Designed for USB 2.0, backward compliant with USB 1.1
• IP67 rated lightweight aluminium housing
• Supports both 11bit (CAN 2.0A) and 29bit (CAN 2.0B active) identifiers
• Supports silent mode for analyzing tools
• 100% software compatible with application written for all Kvaser hardware with Kvaser CANlib SDK
• Interfaces the CAN bus with a D-SUB connector

Pritaikymas

Communications & Networking, Multimedia, Portable Devices, Automotive, Wireless
