86502CY
Multipair Cable, Data, Per M, Screened, 2 Pair, 26 AWG, 0.14 mm²
Reikia daugiau?
| Kiekis | |
|---|---|
| 1+ | 10,380 € |
| 5+ | 9,340 € |
| 10+ | 8,650 € |
Informacija apie produktą
Produktų apžvalga

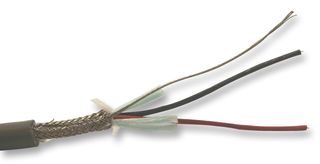

The 86502CY is a 26AWG 2-pair Xtra-Guard® continuous flex screened Data Cable with finely stranded tinned copper conductors and lubricated semi-rigid PVC insulation. It is designed to provide excellent performance in high-flex, high torsion and continuous-flex applications. Its rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6. It is shielded with 25% minimum overlap of aluminium/polyester foil, tinned copper braid with 85% shield coverage.
- CPR: Not Yet Qualified
- Supra-shield provides precise EMI interference resistance
- IP67/NEMA 6 Protection
- 15.5lb Maximum pull tension
- 73Ω Characteristic impedance
- Up to 6-million flex life cycles
Pritaikymas
Communications & Networking, Computers & Computer Peripherals, Robotics, Automation & Process Control, Industrial
Techniniai duomenys
Screened
26AWG
-
Grey
300V
Tinned Copper
Xtra-Guard Flex Series
2 Pair
0.14mm²
-
7 x 0.16mm
PVC
6.1mm
No SVHC (21-Jan-2025)
Techniniai duomenys (1)
Alternatyvos 86502CY
Rasta produktų: 1
Susiję produktai
Rasta produktų: 6
Teisinė ir aplinkosaugos informacija
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesasKilmės šalis:United States
