DM320113

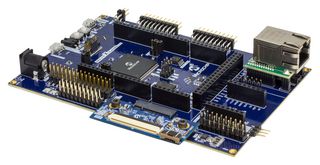

AM E70 Xplained ultra evaluation kit is a hardware platform for evaluating the ATSAME70 and ATSAMS70 families of microcontrollers (MCU). It is supported by our free-to-use MPLAB® Harmony v3-embedded software development framework, running in MPLAB® X Integrated Development Environment (IDE). The evaluation kit provide easy access to the features of the ATSAME70 and is a valuable assistant when integrating the device into a custom design.

• Cortex -M7 ATSAME70Q21B microcontroller
• 2048KB flash and 384KB RAM
• 32Mbit (4MB) QSPI, 16Mbit (2MB) external SDRAM and serial EEPROM w/MAC address
• Arduino mega interface
• Modular Ethernet interface (RMII + SPI)
• Modular graphics interface
• Image sensor interface headers (ISI), CAN interface, Micro SD card interface
• On-board debugger (EBDG + DGI interface)
• 5-14V input compatible

Įspėjimai

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
