EV50J96A

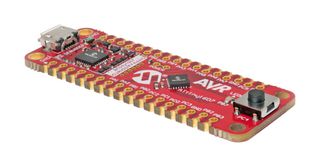

ATtiny3217 Curiosity Nano evaluation kit is a hardware platform to evaluate microcontrollers in the tinyAVR 1- series. This board has the ATtiny3217 microcontroller (MCU) mounted. Supported by Atmel Studio and Microchip MPLAB® X Integrated Development Environments (IDEs), the board provides easy access to the features of the ATtiny3217 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the ATtiny3217.

• One mechanical user switch
• One yellow user LED, on-board debugger
• USB powered or externally powered
• Adjustable target voltage
• MIC5353 LDO regulator controlled by the on-board debugger

Turinys

ATtiny3217 Curiosity Nano evaluation board, Two 100mil 1x17 pin header strips.
