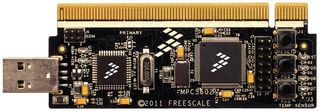

TRK-USB-MPC5602P

The TRK-USB-MPC5602P is a StarterTRAK USB development kit for MPC5602P 32bit Qorivva microcontroller. The Qorivva MPC5602P 32bit microcontroller (MCU) includes the latest in integrated devices for sophisticated chassis applications. These scalable power architecture devices are supported by an enablement ecosystem that includes software drivers, operating systems and configuration code to help you quickly implement your designs. The Embedded OSJTAG circuitry on the TRK-USB-MPC5602P board allows the processor on the board to be debugged and programmed via USB from a PC. In addition, the demo board can be powered using the USB bus.

• Three user programmable multi coloured LEDs
• Two user programmable push buttons
• Temperature sensor
• Primary tower system connector
• OSBDM debugger through USB
• 14 pin JTAG connection port
• 14 pin JTAG connection port
• Embedded OSJTAG

Pritaikymas

Automotive, Automotive

Turinys

TRK-USB-MPC5602P board, Warranty card.

Pastabos

The board’s embedded OSJTAG is intended to function with the onboard processor only. It cannot be used to communicate with other devices.
