72-14110

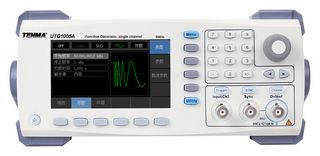

72-14110 is a function/arbitrary waveform generator from Tenma use direct digital synthesis to generate accurate and stable waveform output with resolutions as low as 1µHz. This device is economical, high-performance, multi-functional single channel waveform generators. It can generate accurate, stable, pure and low distortion output signals also can provide high-frequency vertical edge square waves.

• Sine wave output of 20MHz/10MHz/5MHz, full frequency range resolution is 1µHz
• Square wave/pulse waveform of 5MHz, rising, falling and duty cycle time are adjustable
• Using DDS implementation method, with 125M/s sampling rate and 14bits vertical resolution
• 6-bit high precision frequency counter that is TTL level compatible
• Arbitrary waveform storage of 2048 points, stores upto 16 groups of non-volatile arbitrary waveforms
• Abundant modulation types: AM, FM, PM, ASK, FSK, PSK, PWM
• Powerful PC software
• 4.3" high resolution TFT liquid crystal display
• Standard configuration interface: USB device
• Supports internal/external modulation and internal/external/manual trigger/sweep output
• Easy-to-use multifunctional control and number keyboard
• 12 month limited warranty *view Terms & Conditions for details

Pastabos

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
