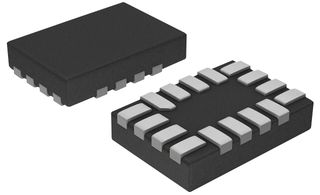

SN74CBTLV3257RSVR

The SN74CBTLV3257RSVR is a 4-bit 1-of-2 high-speed FET Multiplexer/Demultiplexer disabled when the OE\ input is high. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay. The select (S) input controls the data flow. It is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver.

• Rail-to-rail switching on data I/O ports
• Ioff Supports partial-power-down mode operation
• Latch-up performance exceeds 100mA per JESD 78, class II
• 5Ω Switch connection between two ports
• ESD Protection exceeds JESD 22
• Green product and no Sb/Br

Pritaikymas

Wireless, Communications & Networking, Consumer Electronics, Portable Devices
