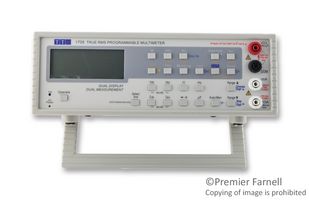

1705

The 1705 is a 4¼ digit meter with a scale length of 12,000 counts and a resolution of 10μV, 10mW and 0.1μA. Combined with a high basic dcV accuracy of 0.04%, it provides measurements that are an order of magnitude better than most hand-held DMMs. The 1705 provides True RMS ac response which gives accurate measurements regardless of the waveform shape. The wide bandwidth attenuator provides high accuracy within the audio band and gives extended response to void errors when measuring switching waveforms.

• Dual Measurement Bench Multimeter
• High performance 12,000 count autoranging DMM
• High accuracy and resolution: 0.04%, 10μV, 10mW
• Dual display and dual measurement technology
• Large and clear LCD (17mm digits) with annunciators
• True RMS ac functions; Frequency and Capacitance
• Wide range of computing functions, e.g. Ax + b
• 100 step data-logger, timed or triggered logging
• RS232 interface standard, GPIB interface optional
• Mains and battery operation as standard

Pritaikymas

Industrial, Maintenance & Repair, Test & Measurement
