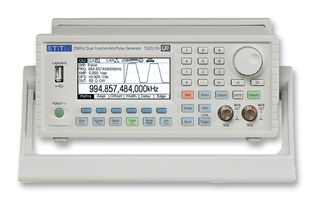

TG2512A

The TG2512A is a two channel version of the TG2511A and has identical features augmented by multi-channel capabilities including coupling for frequency and/or level, full tracking, and defined phase offset. The channels can also be used as completely independent generators and they represent excellent value for money when compared with buying two generators.

• Standard waveforms: sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic, PRBS
• True pulse generator with variable delay and variable rise/fall
• Waveform storage and file transfers using USB flash drives
• Waveform Manager Plus for Windows editing software included
• Large graphic LCD with simultaneous text and waveform display
• 20mV to 20V pk-pk output from 50Ω ; multi function aux. out
• Storage for multiple instrument set-ups in non-volatile memory
• Compact half-rack 2U casing with protective buffers and handle
• Programmable via USB and LAN (LXI) interfaces; GPIB optional
• Two channels - independent or linked with coupled/tracking modes
• Selectable coupling of frequency (equal or offset), amplitude/dc offset
• Inter-channel phase offset of -360 to + 360 degrees with a 0.1 degree resolution
• Comprehensive internal and external digital modulations: PRBS, AM, FM, PM, PWM, FSK, BSPK and Sum

Pritaikymas

Test & Measurement, Signal Processing, Sensing & Instrumentation

Pastabos

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
