58433-3

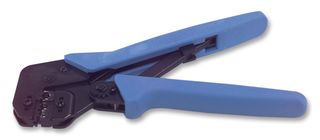

The 58433-3 is a PRO-CRIMPER III Hand Crimping Tool Assembly. The tool assembly is used to crimp the terminals. The tool frame features a stationary jaw and handle, a moving jaw and handle and an adjustable ratchet that ensures full crimping. The tool frame holds the die assembly. The die assembly consists of an anvil and indenter. When closed, the dies form three crimping chambers. The indenter is marked with the letters R, B and Y which correspond with the color of the terminal insulation (red, blue or yellow). Die retaining screws are used to secure the dies in the tool frame.

• Commercial grade hand crimping tool
• Tool ratchet mechanism features an adjustment wheel with numbered settings

Pritaikymas

Maintenance & Repair, Industrial, Commercial

Turinys

354940-1 PRO-CRIMPER III Hand crimping tool frame and 58423-1 Die assembly.
