6-534206-3

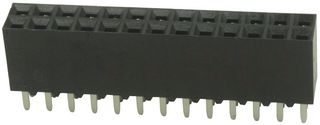

The 6-534206-3 is a 26-way 2-row MOD II Board-to-board Receptacle Assembly with gold-plated phosphor bronze contacts. The board-to-board connector comes with polyester GF housing, board standoff and tin-plated solder tail. The receptacle mates with headers. TE recommends mating gold or duplex plated headers with duplex plated receptacle assemblies. To obtain the minimum mating post length, add 0.51mm (not including the post lead in chamfer) to the maximum point-of-contact dimension. Vertical receptacle assemblies are designed to reliably meet the interconnection requirements of today's electronics industry. The receptacle contact is an established proven design, with a fully enclosed one-piece "box" to protect the contact beams.

• Standoffs for easy flux cleaning
• All through hole assemblies are end stackable
• 200 Cycles durability
• 333VAC Voltage
• 5000MΩ Insulation resistance
• UL94V-0 Flammability rating
• 2A Contact current rating
• 12MΩ Contact resistance
• -65 to 105°C Operating temperature range

Pritaikymas

Industrial
