EVAL-ADAQ4001FMCZ

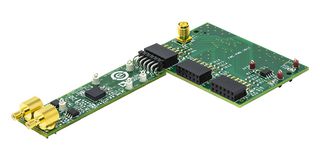

EVAL-ADAQ4001FMCZ is an evaluation board for the ADAQ4000 series µModule data acquisition solution. The ADAQ4001 µModule® data acquisition system evaluation kit (EVAL-ADAQ4001FMCZ) contains the EVAL-ADAQ4001PMDZ peripheral module (Pmod) board and the EVAL-PMD-IB1Z Pmod to field programmable grid array (FPGA) mezzanine card (FMC) interposer board that interfaces with the system demonstration controller board (EVAL-SDP-CH1Z) via a 160-pin FMC connector.

• Fully featured Pmod evaluation board with a Pmod to FMC interposer board
• Versatile analog signal conditioning circuitry
• On-board reference and ADC drivers
• PC software for control and data analysis of time and frequency domain
• System demonstration platform compatible (EVAL-SDP-CH1Z)

Turinys

EVAL-ADAQ4001PMDZ Pmod evaluation board, EVAL-PMD-IB1Z Pmod to FMC interposer board.

Pastabos

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
