Informacija apie produktą
GamintojasDURATOOL
Gamintojo detalės nr.MSP420
Užsakymo kodas2444293
Techninės specifikacijos
Thread Size - Imperial1-3/8"
Thread Size - MetricM6
Head TypePozidriv
Thread Length-
External Length35mm
Fastener MaterialMetal
Fastener PlatingZinc
Product Range-
SVHCNo SVHC (17-Dec-2014)
Produktų apžvalga

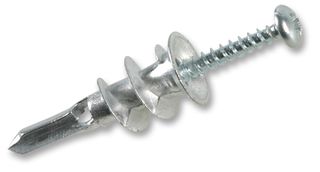

Specially designed zinc die-cast plug for use in plasterboard, chipboard, aerated concrete etc. To install, simply drill a pilot hole and screw the plug into the wall with a Phillips or Pozidriv driver. The object to be mounted is then screwed into the back of the plug as with a normal wall plug. For best results ensure screw length is 20mm more than the thickness of the object to be mounted.
- Specially designed cutting tip for quick installation into plasterboard
- Supplied with No. 6 x 35mm (1⅜") pozi driv roundhead screws
- Alternative screws (6-10 gauge) can be used if required for different fixtures
- The overall length of the plug is 35mm with a maximum screw penetration of 25mm (1")
- Supplied in packs of 100
- Duratool products are rated 4.1 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
Techniniai duomenys
Thread Size - Imperial
1-3/8"
Head Type
Pozidriv
External Length
35mm
Fastener Plating
Zinc
SVHC
No SVHC (17-Dec-2014)
Thread Size - Metric
M6
Thread Length
-
Fastener Material
Metal
Product Range
-
Techniniai duomenys (1)
Susiję produktai
Rasta produktų: 3
Teisinė ir aplinkosaugos informacija
Kilmės šalis:
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesasKilmės šalis:China
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesas
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesasKilmės šalis:China
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesas
Tarifo nr.:74153300
US ECCN:EAR99
EU ECCN:NLR
RoHS suderinamumas:Netaikoma
RoHS reikalavimai dėl ftalatų naudojimo atitikties:Netaikoma
SVHC:No SVHC (17-Dec-2014)
Atsisiųskite gaminio atitikties sertifikatą
Gaminio atitikties sertifikatas
Svoris (kg):.776
