ER34615T

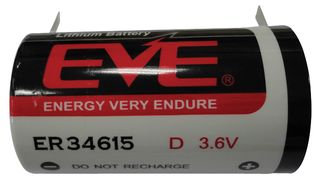

The ER34615T is a D 3.6V/19Ah cylindrical-cell bobbin type Non-rechargeable Battery features a lithium thionyl chloride technology and solder tab terminals. High and stable operating voltage. High minimum voltage during pulsing. Low self discharge rate (less than 1% after 1 year of storage at 25°C). Nominal capacity at 2mA, 25°C, 2V cut-off. The capacity restored by the cell varies according to current drain, temperature and cut-off voltage. Bobbin style lithium thionyl chloride cells are maximised for long life. They offer very high energy density, low self discharge and a long storage life and are particularly suited to low current applications.

• Stainless steel container
• Hermetic glass-to-metal sealing
• Non-flammable electrolyte
• Pulse capability typical up to 400mA
• -60 to 85°C Operating temperature range

Pritaikymas

Metering, Security, Sensing & Instrumentation, System Monitoring, Automotive, Consumer Electronics

Įspėjimai

Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100 C, incinerate or expose contents to water.
