GDM-8261A

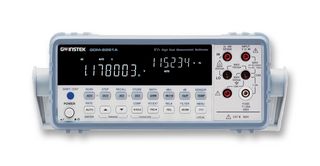

The GDM-8261A is a 10A 6-1/2 digit dual measurement Digital Multimeter with RS-232C, digital I/O and USB connectivity, DMM-Viewer and LabVIEW driver PC software. This multimeter features 0.0035% DCV basic accuracy, performs two selected measurements simultaneously, provides AC+DC voltage or current measurement functions, 11 measurement functions and 10 math functions at high accuracy (35PPM DC voltage accuracy) to accommodate the most frequently performed parameter measurements. High resolution up to 100pA with DCI and 1nA with ACI measurements. High transmission speed up to 2400 readings/second through the USB. Adopts a scanner card, which carries 16 V-channels and 2 I-channels to facilitate the measurements of multiple-test points on either a device or multiple devices all at a press of a button. Ideal for bench assignments.

• VFD, two-colors display
• Maximum 1200000 counts

Pritaikymas

Test & Measurement

Pastabos

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
