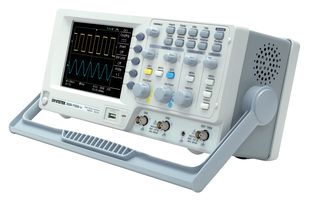

GDS-1102-U
Digital Oscilloscope, GDS-1000-U Series, 2 Channel, 100 MHz, 250 MSPS, 4 kpts, 3.5 ns
Informacija apie produktą
Produktų apžvalga
The GDS-1102-U DSO provides an excellent balance of performance between memory length and sampling speed. Other major features include user-friendly menu tree operations, compact size, ergonomic design, USB host for PC connectivity and USB device port support. It is designed to meet today's most demanding engineering requirements and budgets.
- 4k Memory Length per Channel
- Peak Detect as Fast as 10ns
- Save/Recall of 15 Front Panel Settings & Waveforms
- 5.7" TFT colour Display
- 19 Auto Measurements
- Arithmetic Operators - Add, Subtract, FFT
- USB Port for PC Connection
- Data Logger
Pritaikymas
Maintenance & Repair, Test & Measurement
Turinys
User manual x 1, Power Cord x 1, Switchable Passive Probe (one per channel)
Pastabos
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Techniniai duomenys
GDS-1000-U Series
100MHz
4 kpts
QVGA LCD Colour
Lifetime Warranty
No SVHC (10-Jun-2022)
2 Channel
250MSPS
3.5ns
One 100MHz GTP-100A-4 Passive Probe Per Channel (1:1, 10:1 Switchable)
EU, UK
