M80-5002042
Pin Header, Dual in Line, Wire-to-Board, 2 mm, 2 Rows, 20 Contacts, Through Hole Straight
Reikia daugiau?
| Kiekis | |
|---|---|
| 1+ | 11,840 € |
| 10+ | 9,200 € |
| 25+ | 8,640 € |
| 100+ | 8,070 € |
| 250+ | 7,910 € |
Informacija apie produktą
Produktų apžvalga

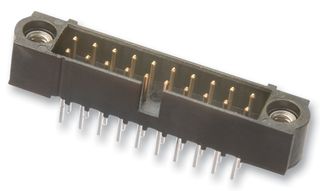

The M80-5002042 is a 20-contact male Datamate J-Tek DIL PCB Plug with black UL94V-0 PPS housing, gold plated phosphor bronze contacts and 100% tin over nickel plated termination. The M80 series connector has jackscrews (without board mount), 3mm PC tail, vertical connector orientation, PC tail/through board connection type and M2 thread size. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching and can be produced with a latching feature jackscrew (J-Tek) format.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 800VAC/DC Working voltage
- 25mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance
- 500 operations Durability
Pritaikymas
Industrial
Techniniai duomenys
Wire-to-Board
2Rows
Through Hole Straight
Shrouded
Gold Plated Contacts
No SVHC (21-Jan-2025)
2mm
20Contacts
Datamate J-Tek M80-5
Phosphor Bronze
PCB Header
Techniniai duomenys (4)
Teisinė ir aplinkosaugos informacija
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesasKilmės šalis:Great Britain
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesas
„RoHS“
„RoHS“
Gaminio atitikties sertifikatas
