EVALIM67D130FLEXKITTOBO1

EVALIM67D130FLEXKITTOBO1 is a XENSIV™ MEMS microphone flex evaluation kit that allows for evaluation with minimal effort. Its small size and flexibility enables direct placement of the flex board into a prototype. Each flex kit consists of five flex boards and one adapter board. The digital flex board is equipped with a digital PDM output microphone and a 0.1µF supply bypass capacitor. It can be connected to a 6-position ZIF connector with a 0.5mm pin spacing, such as the Molex 0527450697, or wires can be soldered directly on the flex board. The analogue flex board is equipped only with the differential MEMS microphone. The adapter board has a 6-position ZIF and a 2.54mm board-to-board connector. The adapter board provides the ability to configure the select pin of digital microphone to VDD or Ground.

• Quick and easy connection to evaluation system
• Small size is 25mm x 4.5mm
• Pre soldered MEMS microphone
• Configurable select pin configuration for digital microphones

Turinys

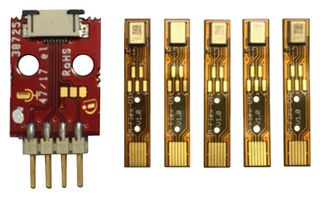

Five XENSIV™ MEMS microphones IM67D130A mounted on flex board, Adapter board.
