TLS805B1LDVBOARDTOBO1

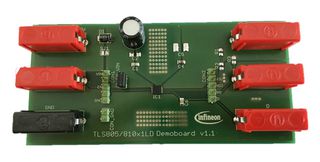

Demo board to demonstrate the ultra-low quiescent current linear voltage regulator TLS805B1LDV in TSON-10 package. The TLS805B1LDV is a linear voltage regulator featuring wide input voltage range, low dropout voltage and ultra-low quiescent current. With an input voltage range of 2.75 V to 42V and ultra-low quiescent of only 5μA, the regulator is perfectly suitable for automotive or any other supply systems connected permanently to the battery. The TLS805B1SJ/LDV is the adjustable output version with an accuracy of 2% and output current capability up to 50mA. The new regulation concept implemented in TLS805B1 combines fast regulation and very good stability while requiring only a small ceramic capacitor of 1 μF at the output.

• Output current capacity up to 50mA
• Off mode current less than 1μA
• Low drop out voltage of typically 100mV at 50mA
• Output current limit protection, overtemperature shutdown, enable
• Wide temperature range
• Linear topology
• Output voltage range from 1.23V to 42.0V
