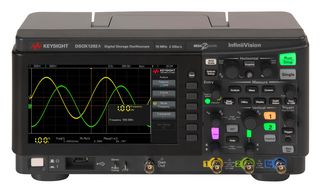

DSOX1202A / DSOX1202A-100

DSOX1202A/DSOX1202A-100 is a 1000 X-series 2 channel, oscilloscope with 100MHz bandwidth upgrade. It is engineered to give user quality, industry-proven technology at unbelievably low prices. Now it’s easy to get professional measurements and accessible expertise at the user's fingertips. Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise.

• 100MHz bandwidth range, 2 analogue channels
• Frequency response analysis (bode gain and phase plots), included in models with WaveGen
• Test quickly and easily with a simple, intuitive user-interface and built-in help, training signal
• External trigger: front panel input, 2GSa/s (one, two-channel operation) max sample rate per channel
• 2M points (one- or two-channel operation) max memory depth per channel
• 200,000 waveforms per second waveform update rate
• Standard - I²C, SPI, UART/RS-232, CAN, LIN serial protocol analysis
• 14 amplitude, 14 timing, and 4 pulse count measurements automatic measurement
• 7inch TFT LCD WVGA display, USB 2.0 (host and device), LAN connectivity
• Dimension (W x H x D) is 314mm x 165mm x 130mm

Turinys

Oscilloscope, Standard 3-year warranty (90 days for unserialized accessories), 5-year calibration period with certificate provided, Standard secure erase, Two N2140A 200 MHz 10:1/1:1 switchable passive probes, Built-in help in multiple languages, Interface language support GUI (English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish, Italian, Czech, and Turkish), Localized power cord.

Pastabos

A discount of up to 24% has been applied to this SKU, and the offer is valid until stock lasts.
