2170226

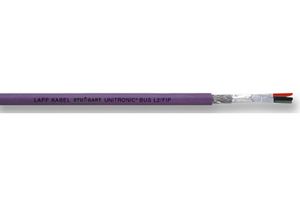

Multipair Cable, Unitronic ProfiBus, Screened, 1 Pair, 24 AWG, 0.64 mm², 328 ft, 100 m
Reikia daugiau?
| Kiekis | |
|---|---|
| 1+ | 465,100 € |
Informacija apie produktą
Produktų apžvalga
The 2170226 is a 100m 1-pair UNITRONIC® BUS PB H 7-W Screened Data Cable with single wire of bare copper and foam-skin polyethylene insulation. It is used for the SIEMENS field-net Sinec L2 DP, field bus system F.I.P. (factory instrumentation protocol) as well as for high performance data networks with 150Ω nominal impedance. The cable is designed for the system-defined transmission rates of 1.5Mbps, 2.5Mbps and 12Mbps, the transmission characteristics conform to the system and guarantee a high operating security during data transmission. The cable is intended for permanent installation in dry and damp interiors. Due to its double screening it is suitable for installation in electromagnetically demanding areas.
- CPR: Not Yet Qualified
- Fixed installation and maximum electromagnetic screening
- Used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
Pritaikymas
Computers & Computer Peripherals, Communications & Networking, Automation & Process Control, Power Management, Industrial
Techniniai duomenys
Screened
24AWG
328ft
Purple
250V
Copper
UNITRONIC BUS PB Series
1 Pair
0.64mm²
100m
7 x 0.2mm
LSZH
8mm
No SVHC (07-Nov-2024)
Techniniai duomenys (2)
Alternatyvos 2170226
Rasta produktų: 1
Susiję produktai
Rasta produktų: 8
Teisinė ir aplinkosaugos informacija
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesasKilmės šalis:Italy
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesas
„RoHS“
„RoHS“
Gaminio atitikties sertifikatas
