22-28-4023

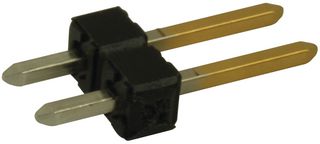

The 22-28-4023 is a 2-way 1-row vertical KK® 254 Board-to-board breakaway header with gold-plated brass contacts. This 42375 series PCB header comes with a high temperature thermoplastic resin housing and through hole termination. It mates with 2695, 6471, 7880 KK® crimp housings and 4455 KK® PC board connector. Additionally, customizable KK headers allow for more polarization options and design configurations, which make the KK® connector system ideal for a variety of industries. The header is suitable for board-to-board, signal and wire-to-board applications.

• Black colour
• UL94V-0 flammability rating
• 6.09mm mating pin length
• Surface mount compatible (SMC)
• Maximum current per contact is 4A
• Maximum voltage is 250V
• Maximum durability of 25 mating cycles

Pritaikymas

Automotive, Communications & Networking, Consumer Electronics, Medical
