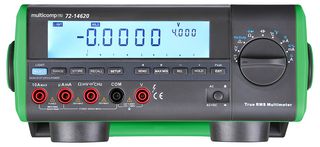

72-14620

High-accurate and stable digital bench-type multimeter controlled by a single-chip computer. This bench-type multimeter is controlled and calibrated by software so that its stability for a long time is guaranteed. With the USB interface and computer software the unit can display, draw record all test processes on a computer, the graphic software has an exclusive dynamic scale, which can describe very small changes in electric parameters.

• Auto ranging multimeter with a large LCD screen and 40,000 counts display
• Supports up to 1kV/10A AC/DC voltage and current measurement
• True RMS measurement
• 100kHz Bandwidth range
• 0-100% Duty cycle
• Input protection
• Auto power off
• Continuity buzzer
• Data hold and data logging
• RS-232 and USB ports
• Low battery indicator
• LCD Backlight
• Can also by powered by 6x 'C' batteries (not supplied)
• Dimensions (WxHxD): 240x105x310mm
• Weight: 2.2kg

Pritaikymas

Test & Measurement, Laboratory, Electronics Service, Electrical, Hobby & Education, Instrumentation

Turinys

Multimeter, test lead, UK/EU power lead, software, RS-232 cable, USB cable, crocodile clip, point contact temperature probe and test clip
