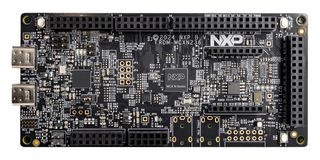

FRDM-MCXN236

FRDM-MCXN236 is a FRDM development board for MCX N23x MCUs. It is a compact and scalable development board for rapid prototyping of MCX N23x MCU. It offers industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an onboard MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience. Applications include industrial, smart city, smart home.

• MCX N23x highly integrated MCUs with on-chip accelerator, intelligent peripherals, advanced security
• QSPI flash W25Q64 (64Mbit)
• HS USB-Type C connector, SPI/I2C/UART connector (mikroBUS, Pmod™)
• WI-FI connector (mikroBUS, Pmod™)
• TJA1057 CAN FD transceiver, audio auxiliary line input, headphone output jack
• Onboard MCU-Link debugger with CMSIS-DAP, JTAG/SWD connector
• FXLS8974CFR3 3-axis accelerometer, visible light sensor, digital microphone SPK0641HT4H-1
• Arduino® header, FRDM header, FlexIO/LCD header, SmartDMA/camera header, Pmod™, mikroBUS™
• RGB user LED, reset, ISP, wake-up buttons

Turinys

FRDM-MCXN236, Quick start guide, USB cable Type-C.
