4400.0017

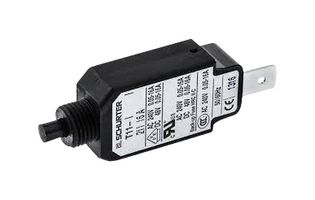

The 4400.0017 is a 1-pole 16A panel-mount threaded neck Thermal Circuit Breaker with 6.3x0.8mm quick connect terminals. The T11 series circuit breaker for equipment is a line of small, single pole push to reset, overload protective device. The trip mechanism is of the superior latch type. A high contact force can be maintained until the unit trips. The Swiss precision design is simple with few moving parts. This results in an extremely reliable CBE with high resistance against shock and vibration. It has short circuit capacity of 96A at 240VAC voltage.

• Wide rated current range
• Compact and reliable design
• Immunity to inrush currents and line transients
• Reset type actuator
• -5 to +60°C Ambient temperature range

Pritaikymas

Consumer Electronics, Power Management, Industrial

Įspėjimai

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
