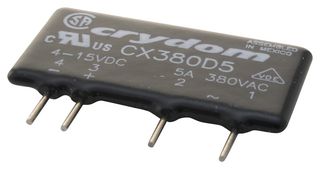

CX380D5

The CX Series SIP Solid State relay is ideally suited for high density PCB applications where a maximum of 5A of current is required. The SSR utilizes a back-to-back SCR output which provides added reliability in commercial and heavy industrial applications. The SSR had a high surge current rating and is available with a Zero Voltage (resistive loads) or Instantaneous Turn-On (inductive or phase controlled loads) output. The CX Series is available with a wide range of AC and DC outputs to suit most applications. All relays in this range are UL, CSA and VDE rated.

• Ratings of 5 A @ 660 VAC
• SCR output for heavy industrial loads
• CE Compliant to EN60950-1
• 240Ω Nominal input impedance
• High surge current
• Ul, VDE and CSA approved
• -30 to 80°C Ambient operating temperature range

Pritaikymas

Industrial

Įspėjimai

Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
