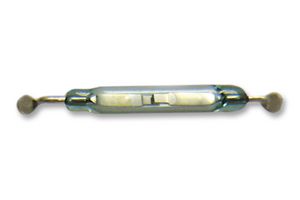

MK23-66-B-2

The MK23-66-B-2 is a SPST-NO miniature Surface-mount Reed Switch with 14mm glass length and 2.2mm diameter. It is suitable for air conditioning, gas metering, barcode scanner, security panel and water flow gauge switch applications. It has 10W rated power, 200VDC switching voltage and 0.5A DC switching current. It is a bare glass version of our surface-mount reed sensors, offering a more economic and compact design as compared to over-moulded reed sensors. It is used in ON/OFF control switch, proximity, motion and position detection in general purpose applications.

• Close differential
• Long life expectancy
• -40 to 130°C Operation temperature range

Pritaikymas

Commercial, Aerospace, Defence, Military, Automotive, Security, Test & Measurement, Sensing & Instrumentation, Industrial
