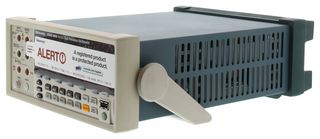

DMM4040

With 6.5 digit resolution, the Tektronix DMM4040 multimeters enable you to measure volts, ohms and amps with a basic V DC accuracy of up to 0.0024%. Integrated frequency, period, capacitance and temperature measurements mean you can make a wide range of measurements with one instrument. You can also monitor and record measurements over time or environmental ranges and view statistical values to see how your circuit's performance is changing. And, dedicated front-panel buttons provide fast access to frequently used functions and parameters, reducing set-up time. The DMM4040 multimeters provide the feature-rich tools and precision you need for your most demanding measurements.

• 6.5 Digit Resolution
• Basic VDC Accuracy of up to 0.0024%
• Volts, Ohms, and Amps Measurements
• True RMS (AC, AC + DC) Measurements
• Diode and Continuity Testing, Frequency and Period Measurements
• 2×4 Ohms 4-wire Measurement Technique
• TrendPlot™ Paperless Data Recorder Mode
• Measurement Statistics and Histogram Mode
• Front and Rear 2×4 Measurement Inputs
• USB Host Port, RS-232, LAN and GPIB Ports

Pritaikymas

Industrial, Maintenance & Repair, Test & Measurement

Turinys

USB to RS-232 Interface Adapter Cable and National Instrument's LabVIEW SignalExpress™ TE Limited Edition for Connecting Your Bench.

Pastabos

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
