TSR 3-24150

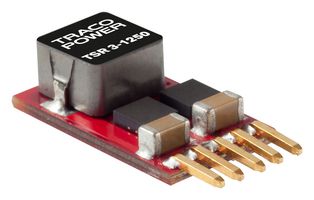

The TSR 3 series from Tracopower are non isolated step down switching regulators. These DC to DC converters can also be operated with negative output voltage and they come in a very compact open frame package of 15.5mm x 9.4mm x 6.2mm. The high efficiency of up to 95% admits full load operation up to 50°C and up to 85°C with 50% current reduction. A low standby current, very wider input range and no requirement for heatsink give these switching regulators a significant advantage over linear regulators. TSR 3 series feature remote on/off input, short circuit protection and overtemperature protection. These models are ideal point of load regulators for highly reliable applications.

• High performance 3A switching regulator
• Suitable for positive and negative output circuit
• Adjustable output voltages
• Wide input voltage ranges from 2.5VDC to 5.5VDC, 4.5VDC to 14VDC and 10VDC to 30VDC
• Low output ripple and noise
• Operating temperature range -40°C to 85°C
• Available in 600KHz and 300KHz switching frequency

Pritaikymas

Power Management, Industrial
