TI327401

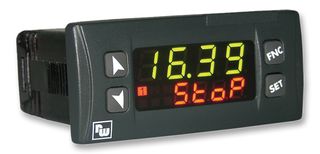

The TI327401 is a compact small Timer made of black and robust plastic case, PC ABS self-extinguishing housing. It is settable in 5 different modes of timer-ON, timer-OFF, pause-work, oscillator, PWM (time-proportioned output), all options with independent setting of ON-OFF times. 3 digital inputs are available (NPN/PNP/Potential free contact) for external commands like start, stop, reset and one input is also analogic in order to allow the modification of working times by external potentiometer. Due to the 5 different time bases (hundredths, tenths, seconds, minutes, hours), the timer is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the timer offers a rugged, compact housing and a brilliant display.

• Universal AC-to-DC power supply
• Easy programming by front keys or software
• Screw terminal connection
• 2-line LED display
• UL94V-0 Flammability rating

Pritaikymas

Industrial, Metering
