EV15T80A

EV15T80A is a MCP9601 evaluation board that is used to digitize the thermocouple EMF voltage to degree Celsius with +/-1C accuracy. Users can easily evaluate all device features using a Type K thermocouple. The device also supports Types J, T, N, E, B, S and R. Each of these types are evaluated by replacing the Type K Thermocouple connector with the corresponding connectors (not included). In addition, the evaluation board connects to PC via USB interface. Temperature can be data-logged using Microchip Thermal Management Software Graphical User Interface (GUI).

Turinys

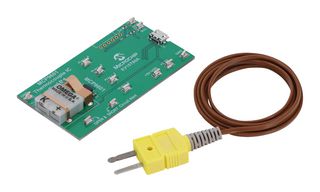

EV15T80A MCP9601 evaluation board, USB cable, Type K thermocouple.
