SEK-SVM4X

SEK-SVM4x evaluation kit has been designed for easy and cost-efficient evaluation of Sensirion’s SGP40 VOC and SGP41 VOC+NOx sensor. The kit contains the SVM41 sensor module and is equipped with an SGP41, an SHT40 humidity and temperature sensor and a microcontroller featuring VOC and NOx index, relative humidity and temperature outputs via either an I2C or UART interface. In addition to the SVM41, the SEK-SVM4x comes with a UART-USB cable that allows for evaluation of the sensors, e.g., by Sensirion’s easy-to-use SEK-ControlCenter viewer software as well as a 6-pin jumper wire cable that enables fast prototyping, e.g., through integration into existing platforms (like Arduino, RaspberryPi, etc.).

• On-board microcontroller for signal processing
• I2C and UART interface with digital output signals
• Power supply voltage range from 3V to 5.5V
• Plug-and-play for fast evaluation and prototyping

Turinys

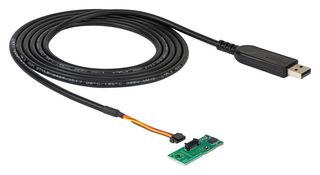

Sensor module, USB-UART cable, Jumper wire cable set.
