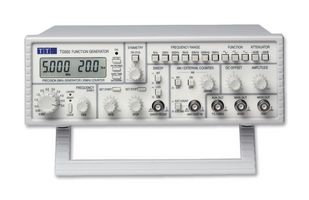

TG550

The TG550 represent the state-of-the-art in 5MHz analogue function generators. Providing very high waveform quality under all conditions. That means low sinewave distortion, low aberration triangle waves and fast-edged square waves with low overshoot. Unlike many competitive products good waveform quality is maintained throughout the frequency range and at low output levels.

• 0.005Hz to 5MHz frequency range
• Simultaneous display of frequency & amplitude
• Frequency locking for crystal controlled stability
• Precision internal linear or logarithmic sweep
• External frequency counter with 7 digit resolution
• Very high waveform quality at all frequencies & levels
• 20V pk-pk from 50Ω or 600Ω plus TTL/CMOS output
• 1000:1 frequency change by vernier or sweep voltage
• lnternal or external amplitude modulation up to 100%

Pritaikymas

Sensing & Instrumentation, Signal Processing, Test & Measurement
