ASLS2
Acceleration and Shock Switch, ASLS Series, 2 G, Normally Open, 24 Vac, 0.25 A, 5 VA
Reikia daugiau?
| Kiekis | |
|---|---|
| 1+ | 21,880 € |
| 10+ | 17,390 € |
| 25+ | 15,070 € |
| 50+ | 13,820 € |
| 100+ | 12,560 € |
Informacija apie produktą
Produktų apžvalga

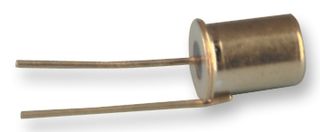

The ASLS2 is a 2 to 4.9G activation level Shock/Linear Acceleration Switch with gold-plated steel case, robust construction and NO (normally open) gold-plated contacts. This through hole mounting switch features easy fitting and proven reliability. It is particularly suited for use in monitoring of centrifugal forces and controlling spin speeds. Suitable for electrical generating windmill and shock sensing.
- 10Ω Maximum contact resistance
- -20 to 85°C Operating temperature range
Pritaikymas
Industrial, Medical, Alternative Energy, Sensing & Instrumentation, Automotive, Security
Pastabos
The cutting or bending point should be no closer than 3mm to the glass to metal seal and the lead should be supported between the cutting or bending point and the glass to metal seal.
Techniniai duomenys
-
Through Hole
-
-
-
85°C
-
-
-
-
2 Pin
-20°C
-
No SVHC (14-Jun-2023)
Techniniai duomenys (1)
Teisinė ir aplinkosaugos informacija
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesasKilmės šalis:United States
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesas
„RoHS“
„RoHS“
Gaminio atitikties sertifikatas
