SEN0161

SEN0161 is a gravity: analogue pH sensor/meter kit for Arduino. This analogue pH meter, specially designed for Arduino controllers and has built-in simple, convenient and practical connection and features. It has an LED which works as the Power Indicator, a BNC connector and a PH sensor interface. To use it, just connect the pH sensor with BNC connector, and plug the PH2.0 interface into the analogue input port of any Arduino controller. If pre-programmed, you will get the pH value easily. Comes in compact plastic box with foams for better mobile storage. Suitable for water quality testing and aquaculture applications.

• Measuring range from 0-14pH
• Measuring temperature range from 0 to 60°C
• Measurement accuracy of ±0.1pH (25℃)
• Response time of ≤1min
• Cable length from sensor to BNC connector is 660mm
• Module requires 5V power
• Potentiometer for gain adjustment
• LED Power indicator

Turinys

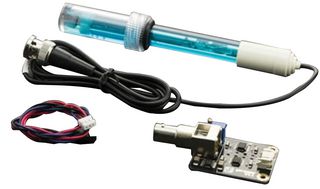

Gravity pH sensor board, pH probe with BNC connector and analogue cable.

Pastabos

Note: The probe is laboratory-grade; it is not designed for long periods of immersion and should be cleaned after each use. Buffer solutions are not included.
