FLASHPRO4
Programmer Unit, FPGA, Supports In-system, IEEE 1149 JTAG Programming, USB 2.0
66 Galite rezervuoti pageidaujamą kiekį dabar
| Kiekis | |
|---|---|
| 1+ | 87,640 € |
Informacija apie produktą
Produktų apžvalga
FlashPro4 is a programmer supporting all FPGAs in the PolarFire, SmartFusion2, IGLOO2, RTG4, IGLOO, ProASIC3, (including RT ProASIC3), SmartFusion and Fusion families. FlashPro4 offers extremely high performance through the use of USB 2.0 and is high-speed compliant for full use of the 480Mbps bandwidth. Powered exclusively via USB, FlashPro4 provides a VPUMP voltage of 3.3V for programming these devices. Multiple FlashPro4 programmers can be connected to a single PC using USB hubs, enabling the end user to set up a small-scale production environment with concurrent ISP occurring across multiple boards and the FlashPro software.
- Supports in-system programming
- Supports IEEE 1149 JTAG programming through STAPL
- Supports USB 2.0 available
Techniniai duomenys
FPGA
Supports In-system Programming, Supports IEEE 1149 JTAG Programming through STAPL, Supports USB 2.0
No SVHC (25-Jun-2025)

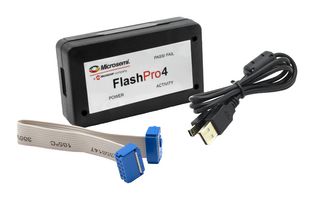

FlashPro4 Programmer Standalone Unit, USB A to mini-B USB & 10-Pin Ribbon Cable, Quickstart Card96
-
Techniniai duomenys (3)
Teisinė ir aplinkosaugos informacija
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesasKilmės šalis:South Korea
Šalis, kurioje paskutinį kartą gamintojo atliktas stambus gamybos procesas
„RoHS“
„RoHS“
Gaminio atitikties sertifikatas
